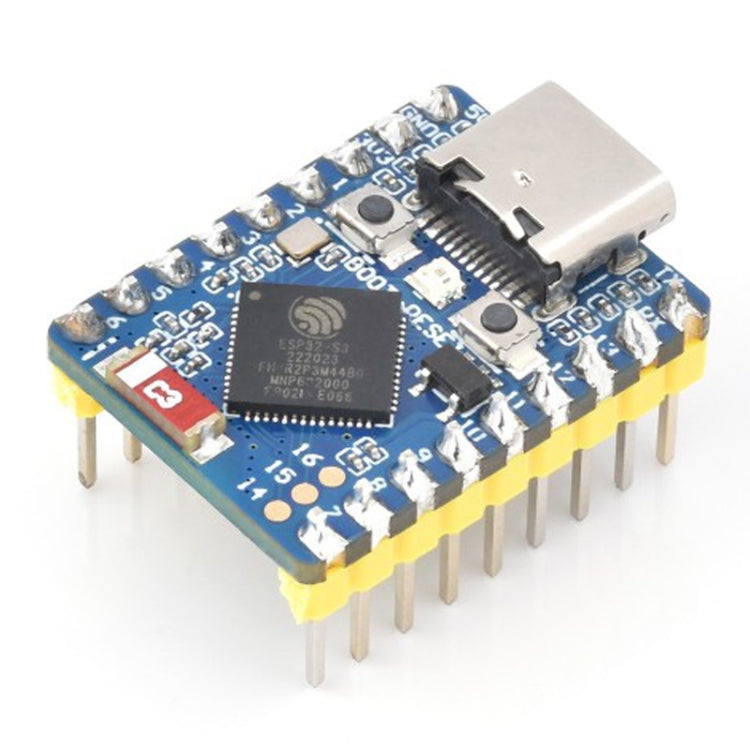

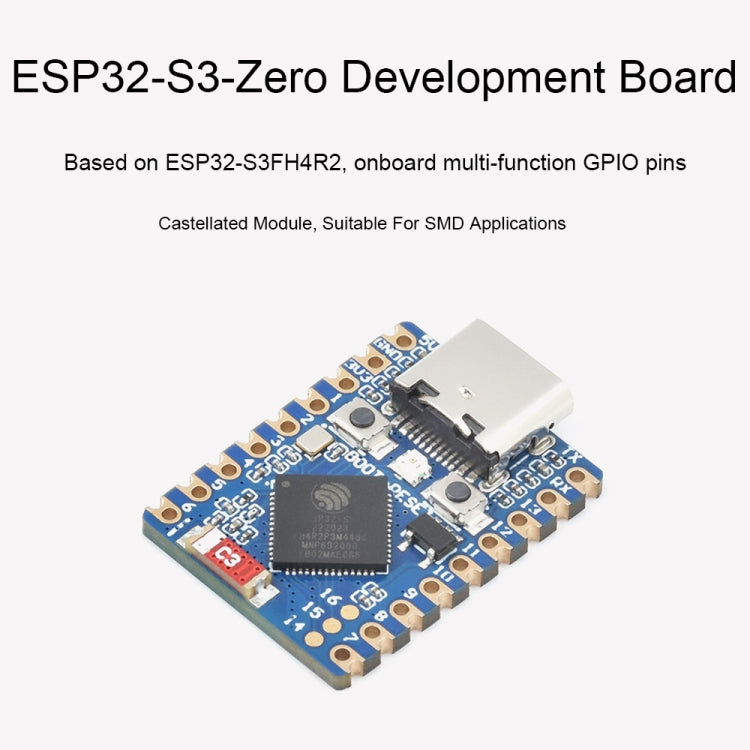

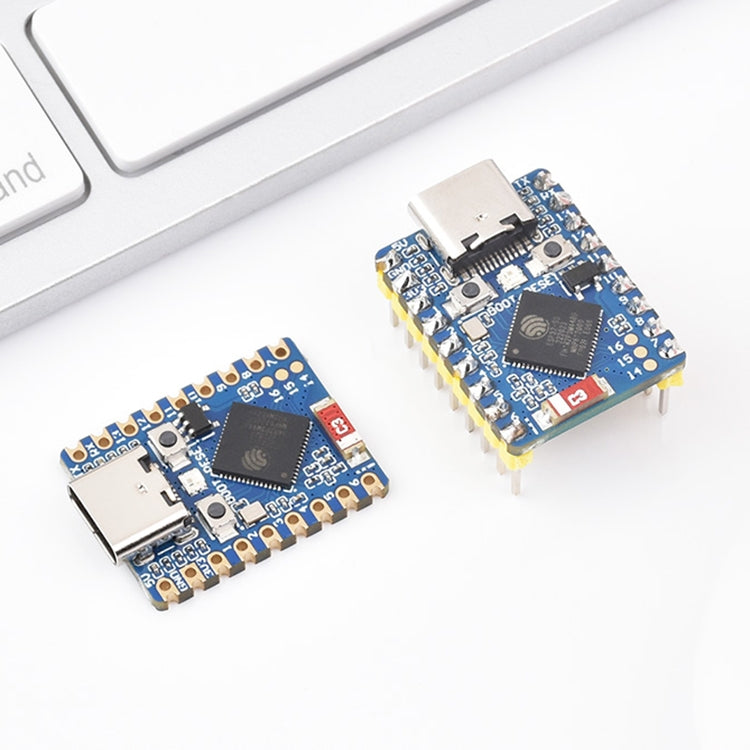

Waveshare ESP32-S3 Mini Development Board, Based On ESP32-S3FH4R2 Dual-Core Processor with Header

Regular price: $22.43
Regular price
Sale price: $22.43

Product variants

Quantity

Details

Availability: In Stock

Description

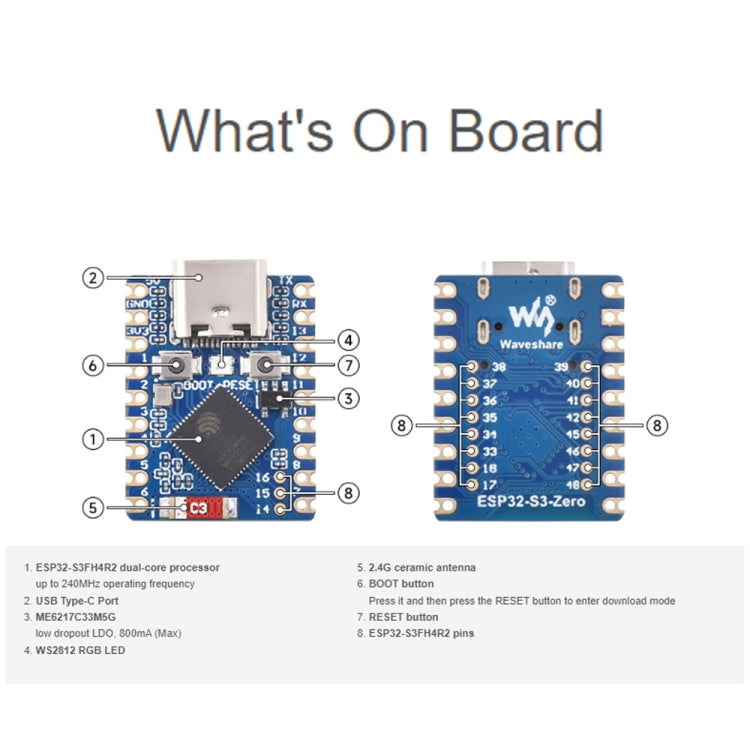

1. Equipped with Xtensa® 32-bit LX7 dual-core processor, up to 240MHz main frequency
2. Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth® 5 (LE)
3. Built in 512KB of SRAM and 384KB ROM, onboard 4MB Flash memory and 2MB PSRAM
4. Castellated module and onboard ceramic antenna, allows soldering direct to carrier boards
5. Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios

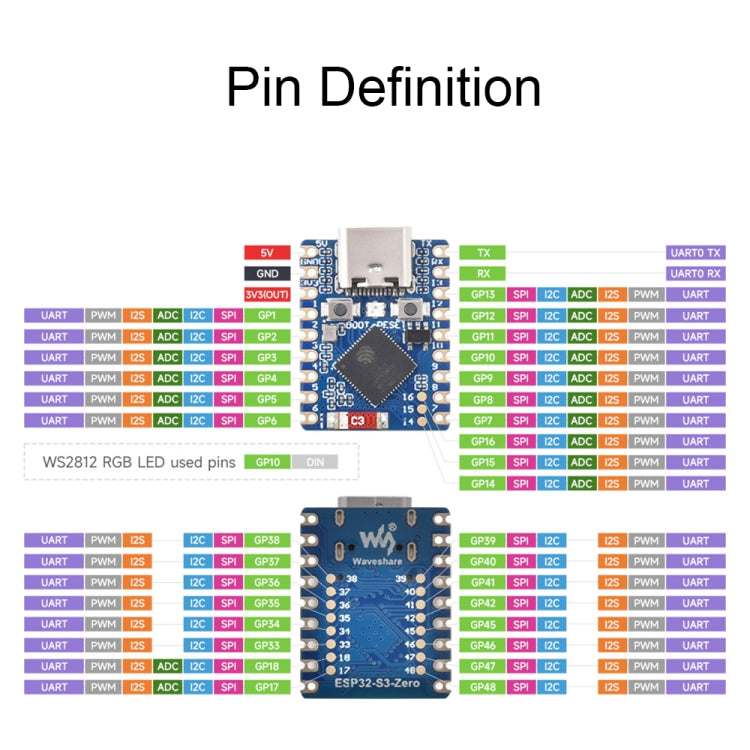

6. Integrated with USB serial port full-speed controller, 34 × GPIO pins allows flexibly configuring pin functions
7. 4 × SPI, 2 × I2C, 3 × UART, 2 × I2S, 2 × ADC, etc.

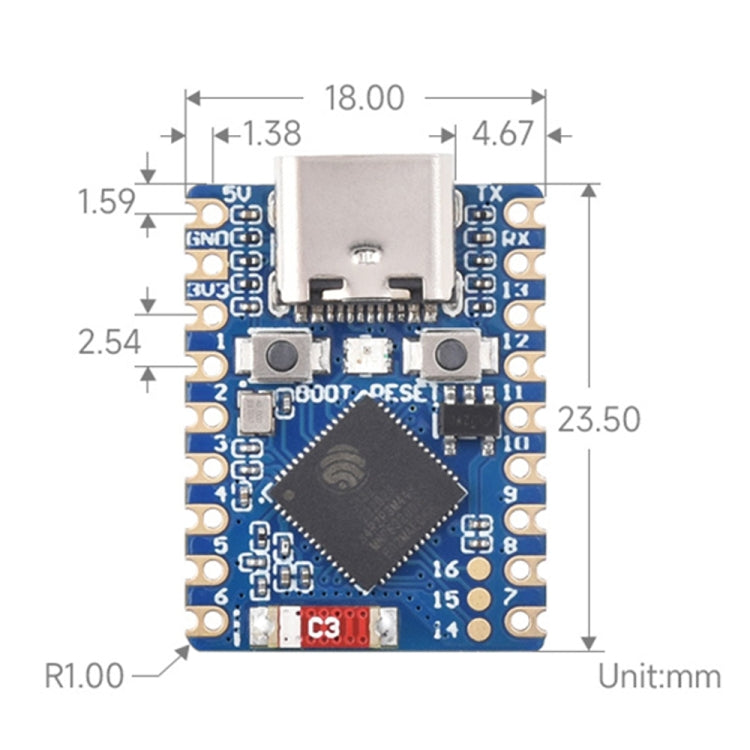

8. Product size: 18 x 23.5mm
9. Weight: 2g, 3g

Specification:

Package Weight

One Package Weight

0.01kgs / 0.03lb

One Package Size

6cm * 5cm * 2cm / 2.36inch * 1.97inch * 0.79inch

Qty per Carton

300

Carton Weight

4.10kgs / 9.04lb

Carton Size

32cm * 32cm * 32cm / 12.6inch * 12.6inch * 12.6inch
