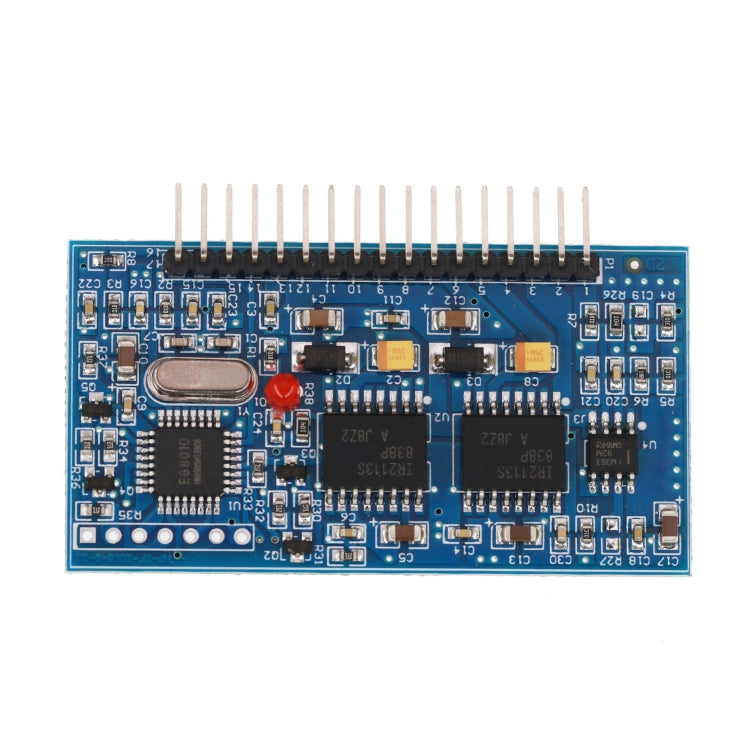

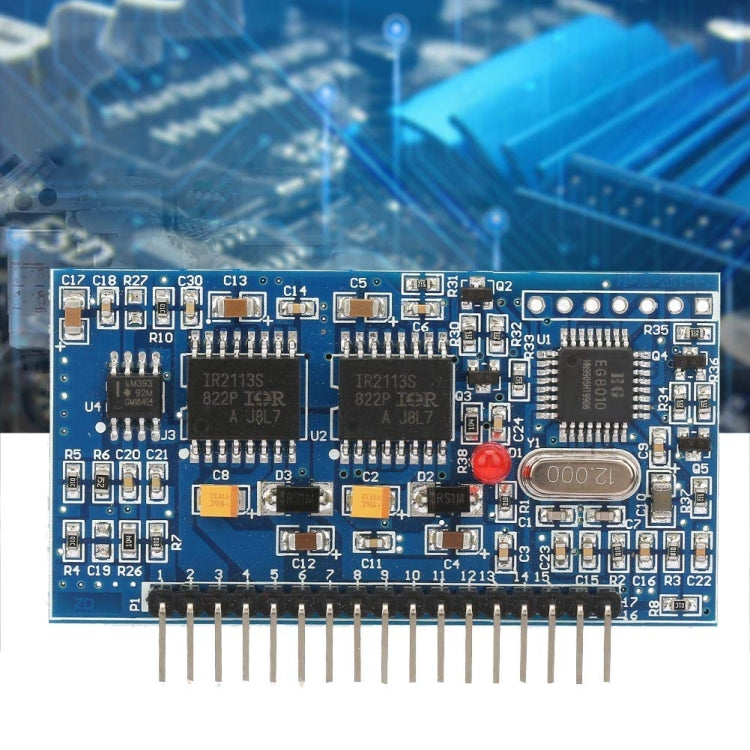

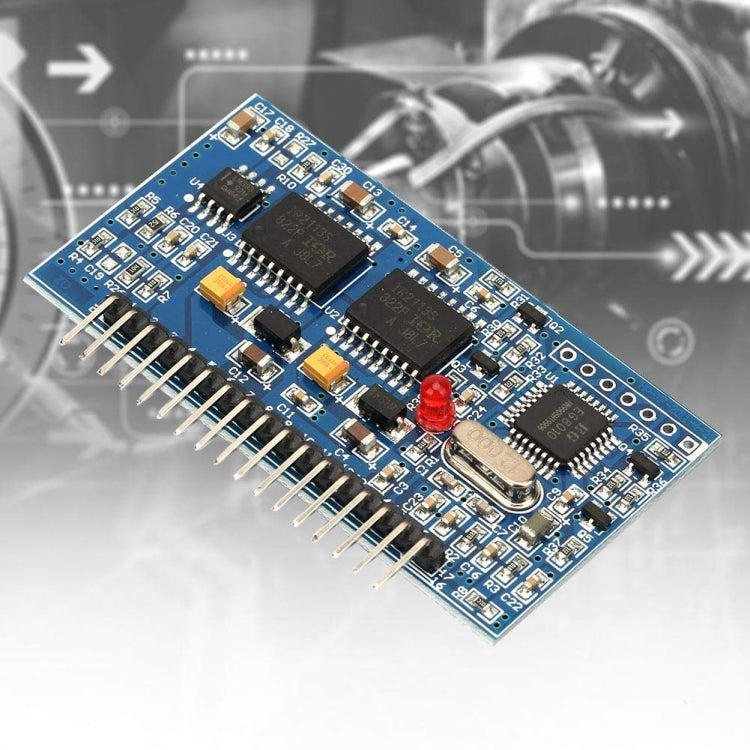

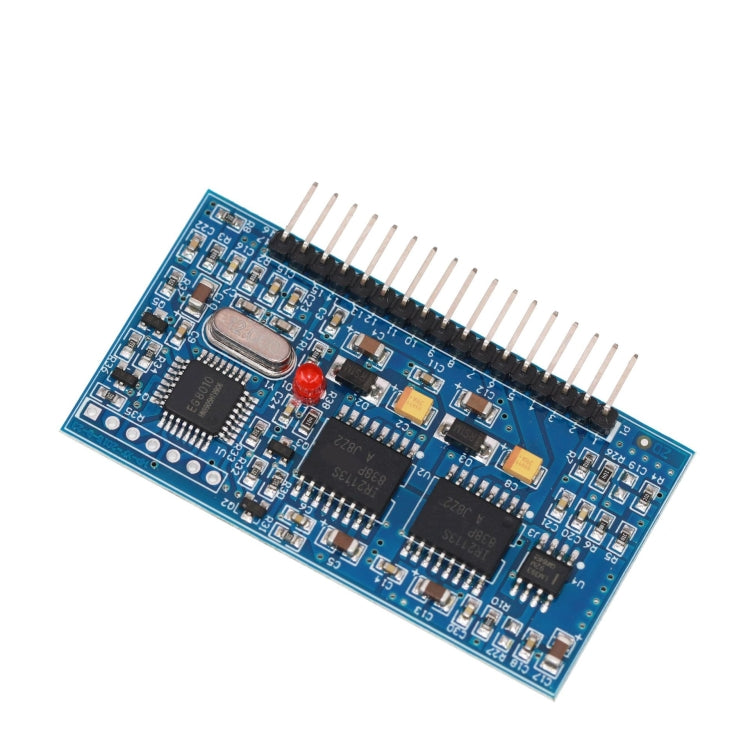

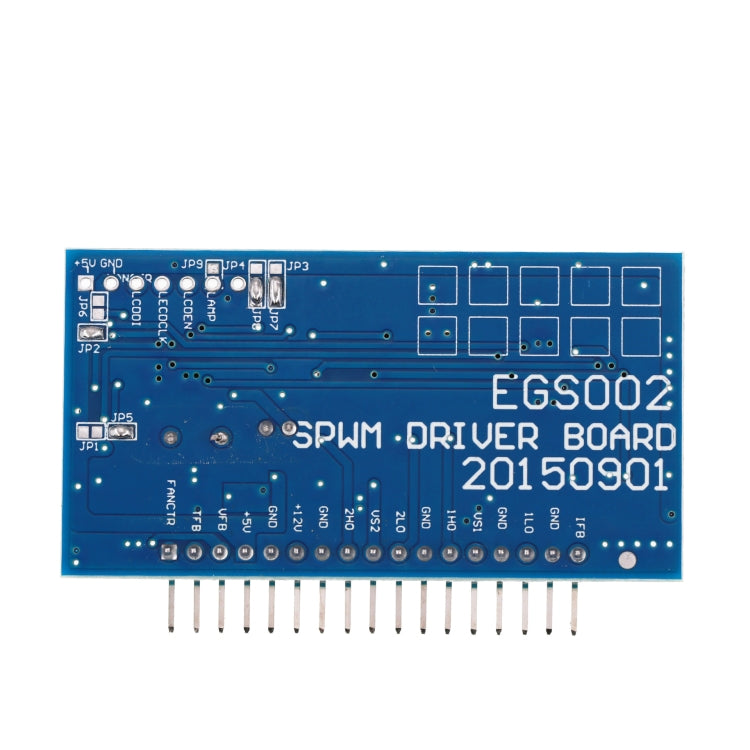

EGS002 Pure Sine Driver Inverter Driver Module

Regular price: $18.68
Regular price
Sale price: $18.68

Product variants

Quantity

Details

Availability: In Stock

Description

1. Purpose: suitable for DC-DC-AC two-stage power conversion architecture or DC-AC single-stage industrial frequency transformer boost converter
2. Frequency: 23.4KHz
3. External 12MHz crystal oscillator, can realize 50Hz or 60Hz pure sinusoidal inverter chip, with high precision, anti-interference and harmonic
4. CMOS technology, integrated SPWM sine generator, dead time control circuit, amplitude factor multiplier, soft start circuit, protection circuit, RS232 serial communication interface and 12832 serial LCD driver module
5. Unipolar and bipolar modulation, real-time processing of voltage, current, temperature feedback
6. With deadband control, the pin can be set to 4 deadband
7. Pin setting soft start mode 1S response time
8. Serial communication to set the output voltage, frequency and other parameters

Specification:

Package Weight

One Package Weight

0.03kgs / 0.07lb

One Package Size

10cm * 6cm * 1cm / 3.94inch * 2.36inch * 0.39inch

Qty per Carton

720

Carton Weight

22.70kgs / 50.04lb

Carton Size

50cm * 32cm * 32cm / 19.69inch * 12.6inch * 12.6inch
