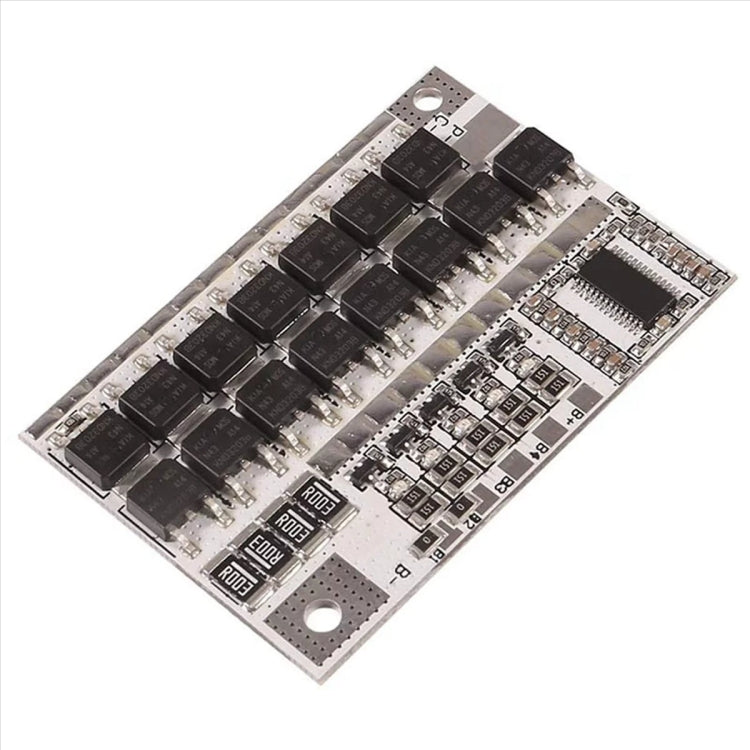

5S 3.7V 12V 100A Polymer Li-ion Phosphate Battery Protection Board With Balance

1. Lithium battery protection board specially designed for lithium phosphate, ternary lithium battery, lithium cobalt oxide, and lithium manganate battery packs.
2. Adopt mature protection circuit, IC and support disconnection protection, imported high-current internal resistance MOS (single MOS internal resistance 3 milliohms), with complete and stable charging and discharging various protection functions, battery core hardware balancing processing, balancing current Appropriate, balanced heating is reasonable and does not affect battery pack performance.
3. Output current: 80A for separate port; 60A for same port
4. We have protective boards with two parameters: lithium iron phosphate and polymer. If your battery is lithium iron phosphate with a nominal 3.2V single cell, you need to select lithium iron phosphate 3.2V in the category. If it is polymer (ternary) , cobalt acid, lithium manganate battery) single battery nominal 3.6V (or 3.7V) please choose the polymer 3.7V classification.
5. Working temperature: -20-65 degrees Celsius
​
