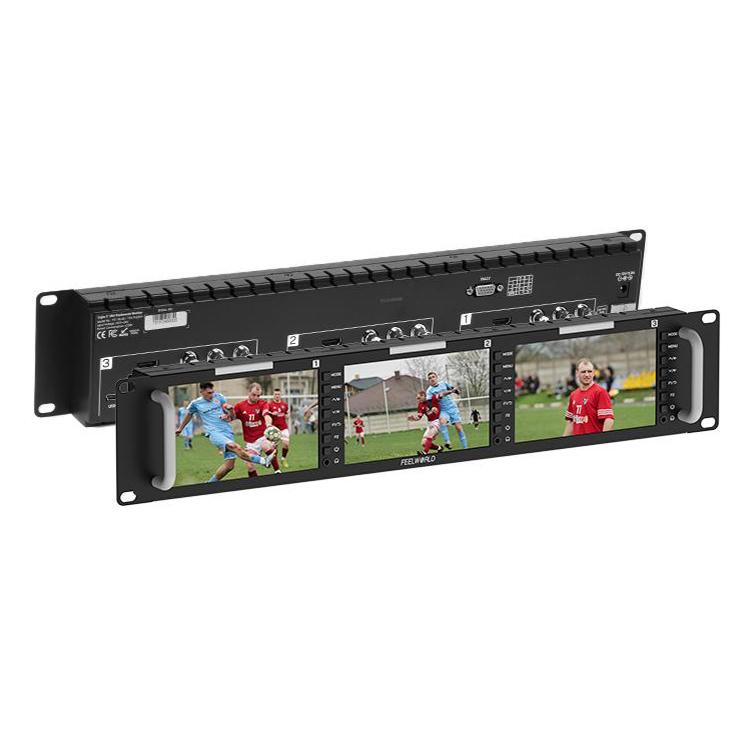

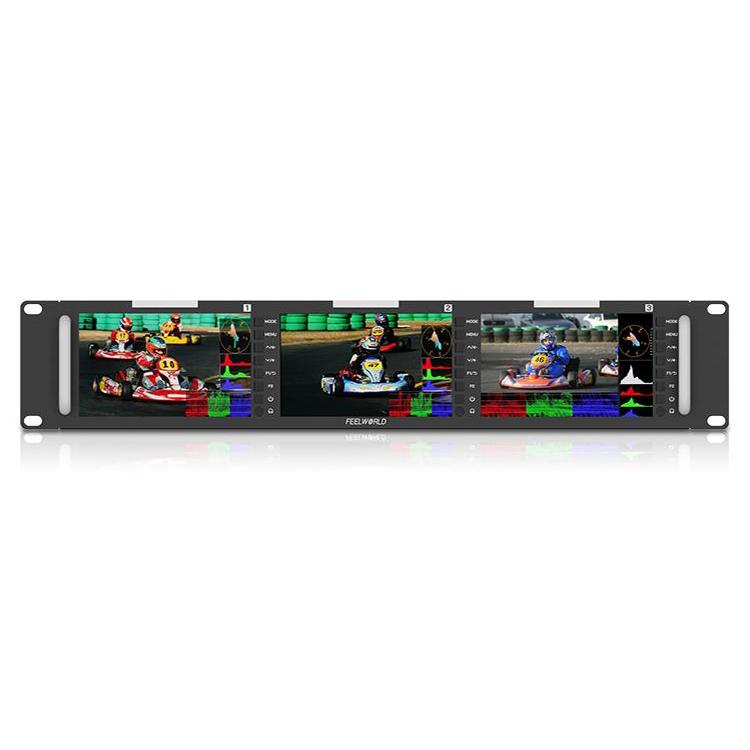

FEELWORLD T51 PLUS Triple 5.5 inch 2RU Rackmount Monitor Full HD 3G-SDI 4KHDMI AV Monitor (US Plug)

Features
1. FHD1920x1080 IPS, view details with confidence

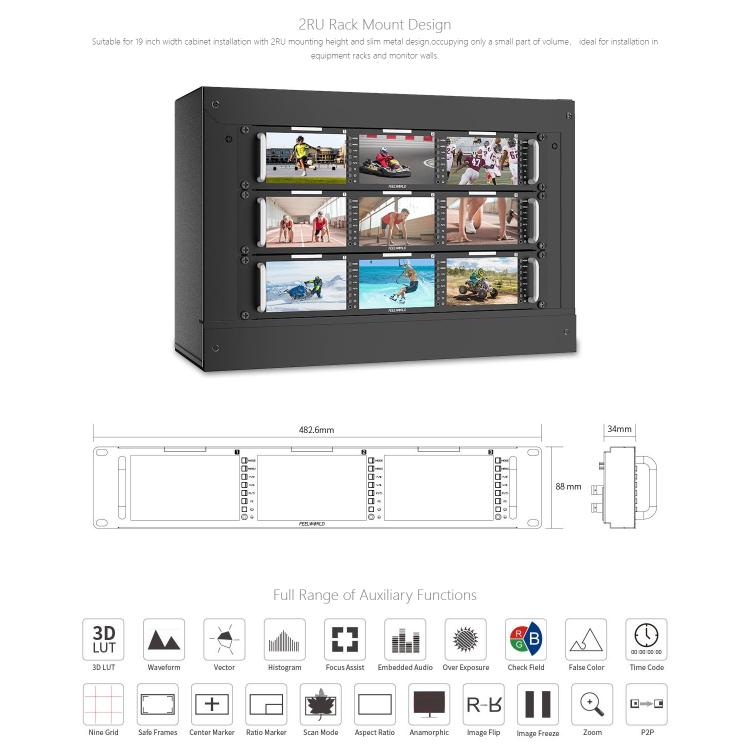

2. Triple 2RU rackmount design, compact thin and lightweight design, which make it suitable for installing where the space is limited and also could be installed in the standard 19-inch rack.

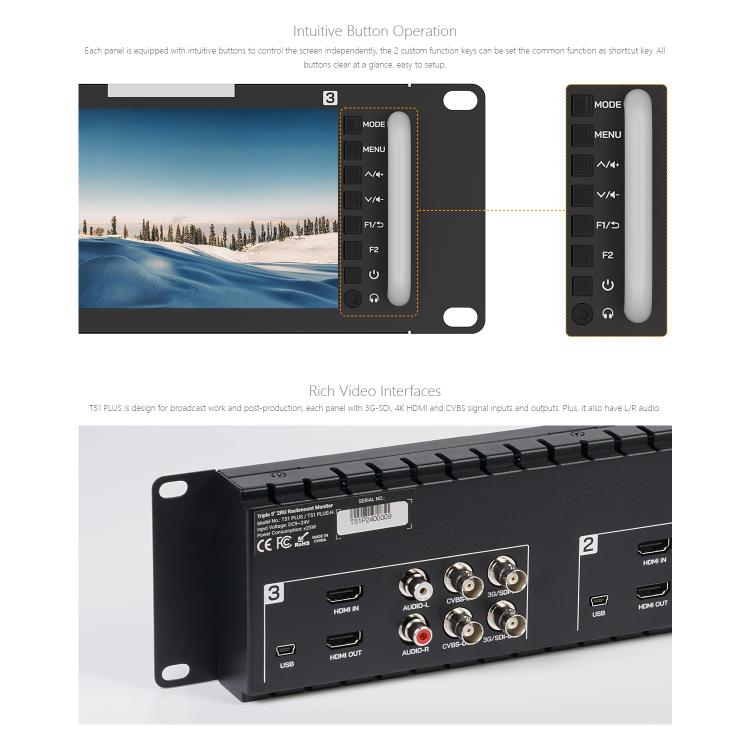

3. Intuitive button operation, easy to setup.
4. Three-color Tally indicator, enhance team cooperation
5. 3G-SDI, HDMI, Video, Audio(L/R) and 3G-SDI, HDMI, Video loop-through output
6. 3.5mm headphone jack output

Special Features:
1. Wavefrom (RGB, YUV, Y)
2. Vector scope
3. Histogram (RGB1, RGB2, Y)

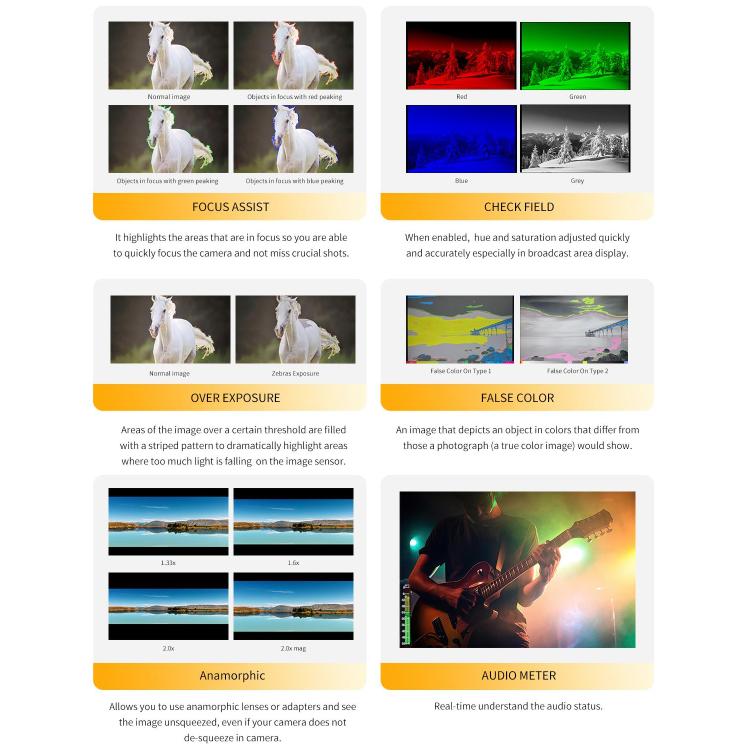

4. Focus Assist(Red, Green, Blue), you can adjust the peaking level after turning on 1-10
5. Embedded Audio
6. Over Exposure (you can adjust the exposure level after turning on 10~100???
7. Check Field (Red, Green, Blue, Mono)
8. False Colors
9. Time Code (only under SDI signal with LTC, VITC modes)
10. Nine Grid
11. Safe Frames (80%, 85%, 90%, 93%, 96%, 2.35:1)
12. Center Marker
13. Safe Marker (80%, 85%, 90%, 93%, 96%, 2.35:1)
14. Ratio Marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1)
15. Scan Mode (Under Scan, Over Scan)
16. Aspect Ratio (Auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, Full Screen)
17. Anamorphic (1.33X, 1.6X, 2.0X, 2.0X MAG, User 1.20x~2.00x)
18. Image Flip (Horizontal, Vertical, Hor&Ver)
19. Image Freeze
20. Zoom Mode (2X, 4X, 9X, 16X, User 100%~200%)
21. Pixel to Pixel

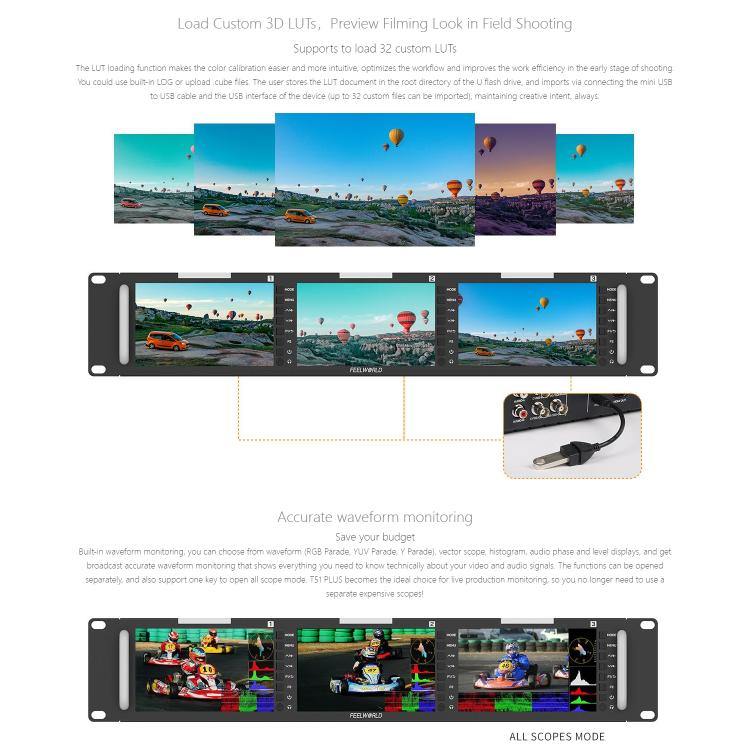

22. 3D-LUT (built-in SLOG2, SLOG3, LOGC, VLOG; can be upload 32 custom LUT)
23. Color Temp. (5600K, 6500K, 9300K, User)

Specifications
Display Spec.
1. Model: T51 PLUS
2. Screen Size: 5.5 inch x 3 IPS
3. Resolution: 1920 x 1200 pixels
4. Pixel Pitch: 0.0639(H) x 0.0213(W) mm
5. Aspect Ratio: 16:10
6. Brightness: 400cd/m2
7. Contrast Ratio: 1000:1
8. Backlight: LED
9. Viewing Angle: 80 degree /80 degree (L/R) 80 degree /80 degree (U/D)

Input (Each LCD)
1. 1 x BNC: 3G-SDI (optional)
2. 1 x HDMI: HDMI
3. 1 x BNC: Video
4. 2 x RCA: Audio(L/R)

Output (Each LCD)
1. 1 x BNC: 3G-SDI (optional)
2. 1 x HDMI: HDMI
3. 1 x BNC: Video

Audio (Each LCD)
Audio Out: Stereo Headphone x 1

SDI Support Format
1. 720p(60/59.94/50/30/29/25/24/23.98)
2. 1080i(60/59.94/50)
3. 1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)

HDMI Support Format
1. 480i/576i/480p/576p
2. 1080i (60/59.94/50)
3. 720p (60/59.94/50/30/29/25/24/23.98)
4. 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
5. 3840 x 2160p (30/29.97/25/24/23.98 Hz)
6. 4096 x 2160p (24Hz)

General:
1. Input Voltage: DC 9-24V
2. Power Consumption: Less than or equal to 25W
3. Working Temperature: -20 degree C~55 degree C
4. Storage Temperature: -30 degree C~65 degree C
5. Install Way: Rack Mount
6. Unit Size: 482.6Lx88Hx34D mm
7. Unit Weight: 1418g

Package List
1. Monitor x 1
2. Tally adapter kit x 1
3. Mini USB to USB cable x 1
4. 3A power adapter x 1
5. Manual x 1
