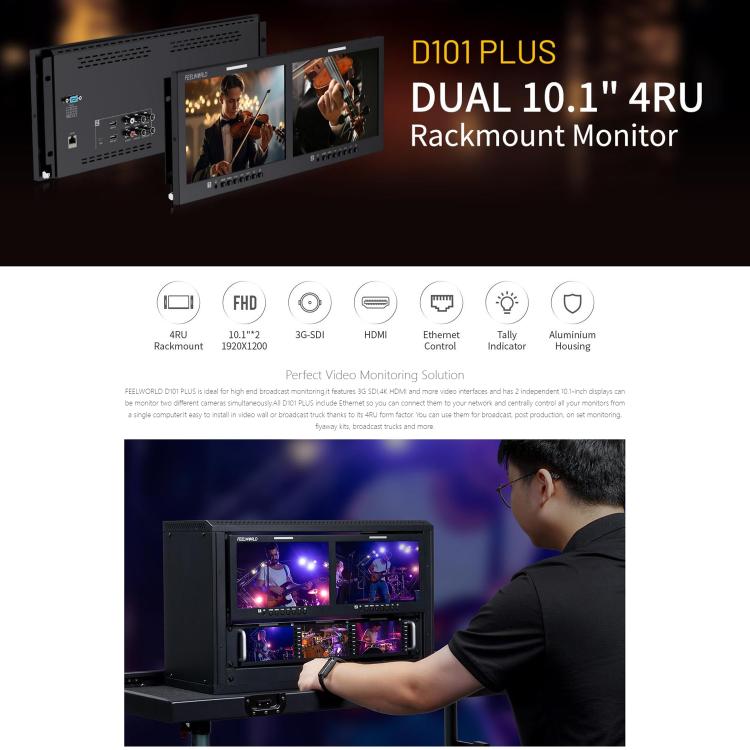

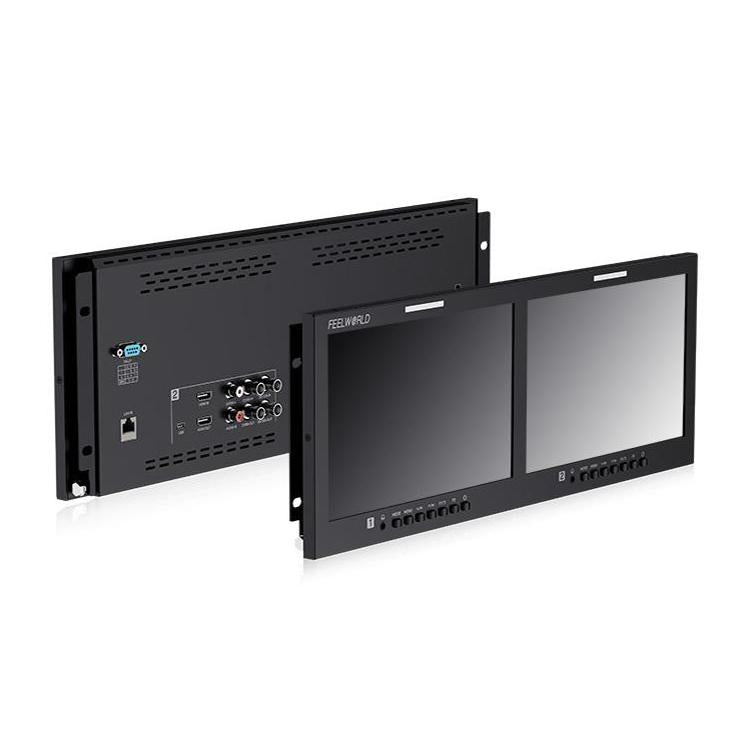

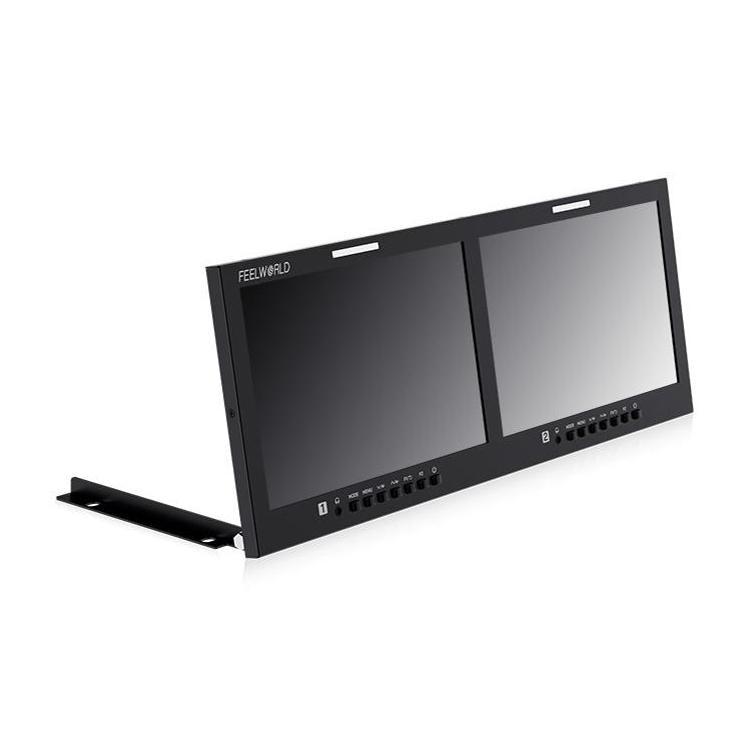

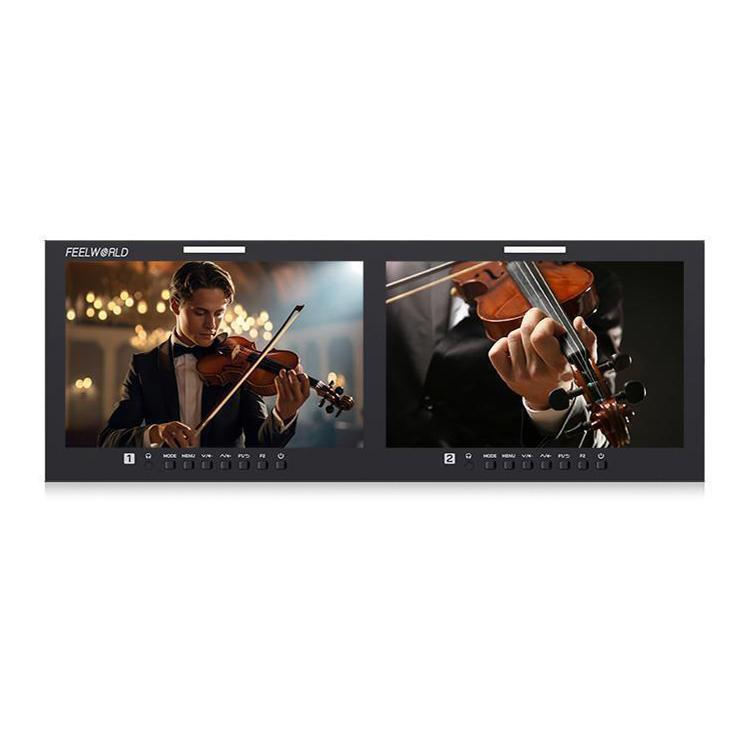

FEELWORLD D101 PLUS Dual 10.1 inch 4RU Rackmount Monitor 4K HDMI SDI 1920 x 1200 IPS Monitor (US Plug)

Features

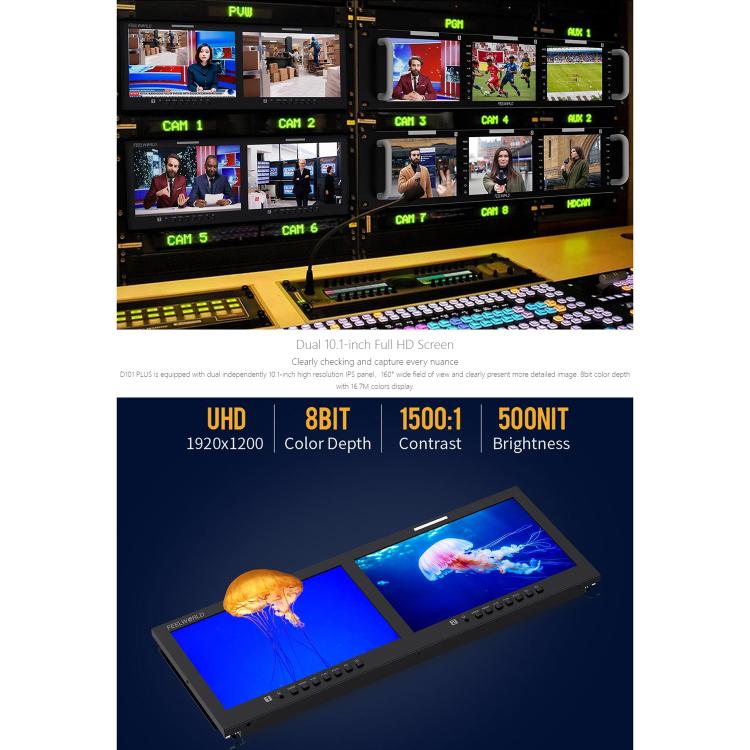

1. 2 x 10.1 inch 1920 x 1200 full HD IPS screen

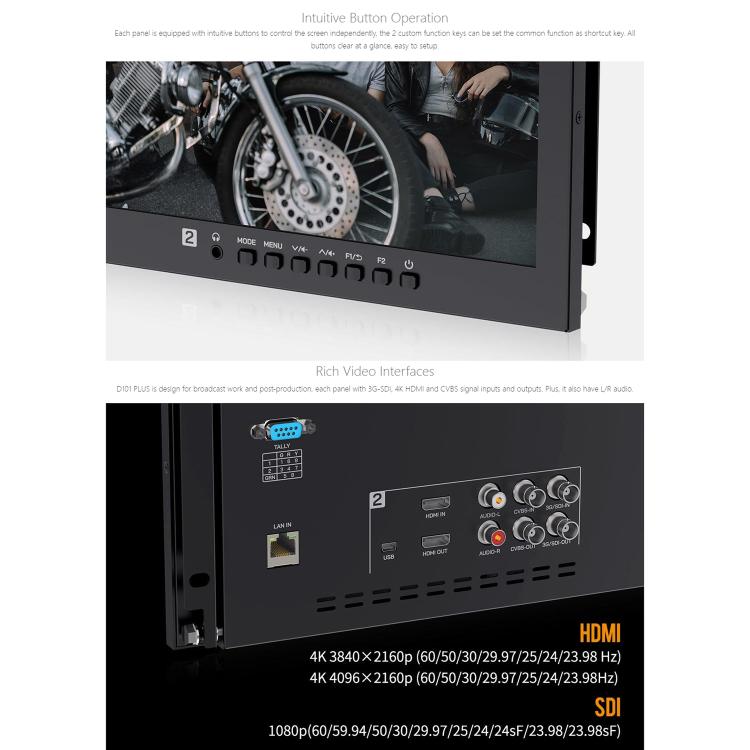

2. Intuitive buttons + new menu interface, convenient to operation

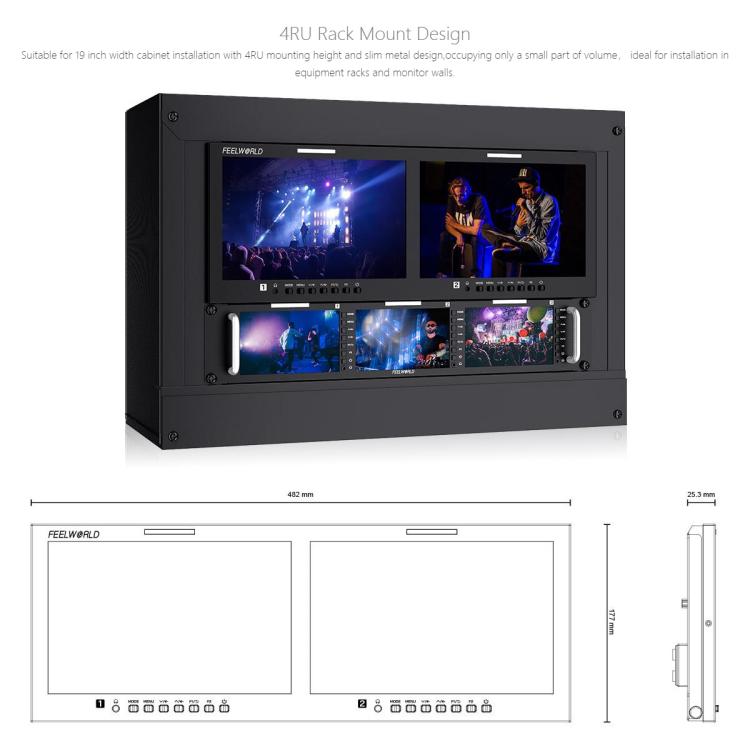

3. 3RU rack mount design, easy to mount on TV wall or broadcast truck

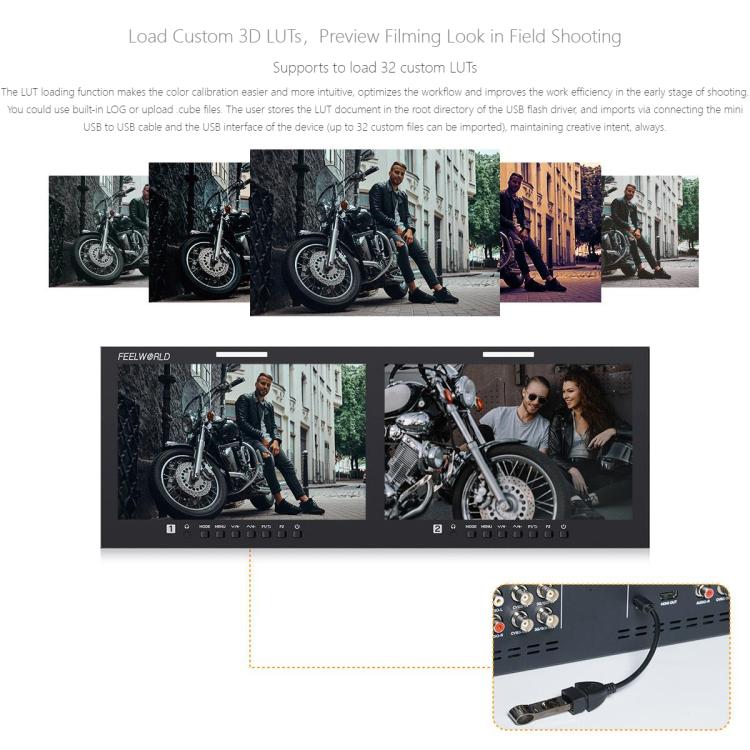

4. Upload custom 3D-LUT, preview film look

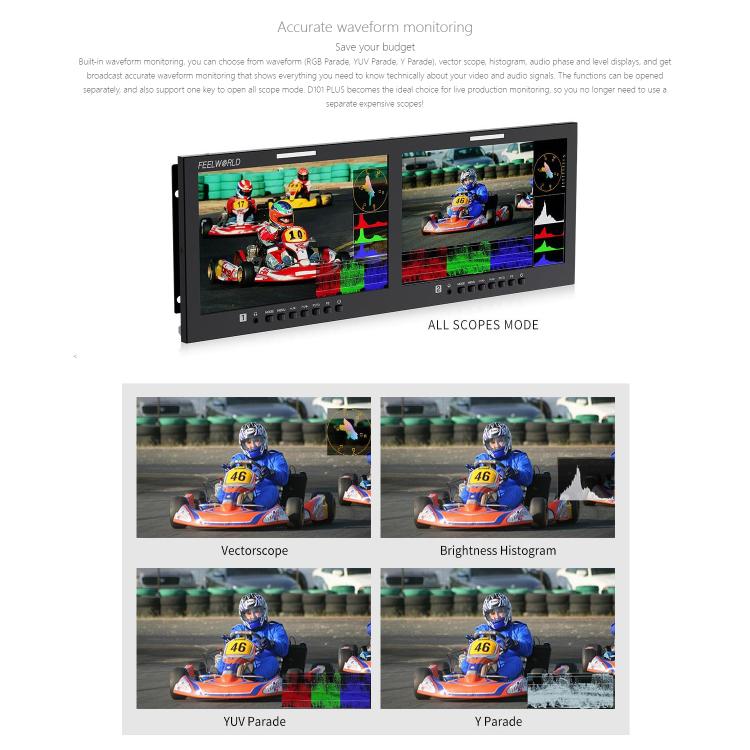

5. With Waveform, Vector scope, RGB Histogram, Focus Assist, Monochrome etc. functions, help you accurately exposure and focus every shot
6. Connect to Ethernet remotely adjust the monitor via software

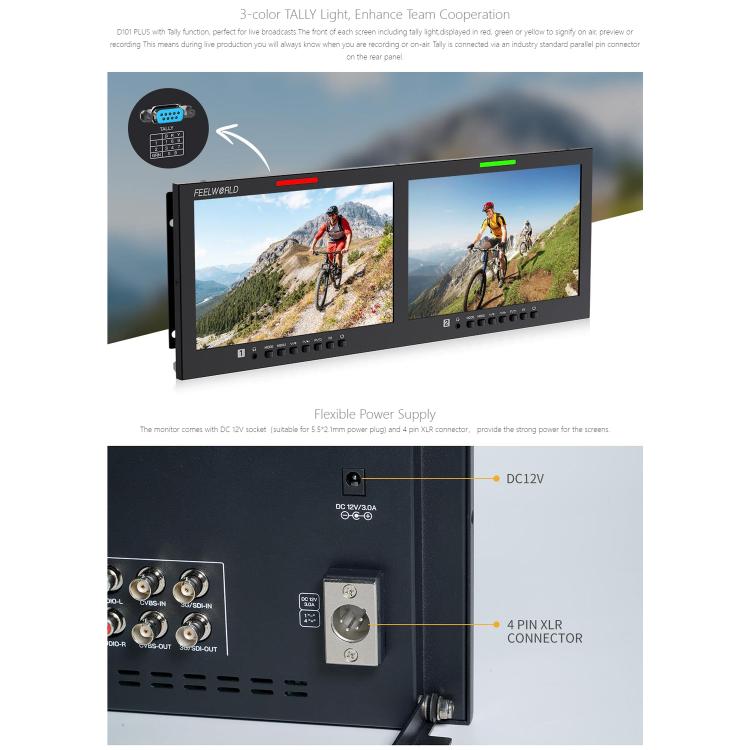

7. Front panel built-in 3 colors TALLY indicator, enhance shooting cooperation
8. Multiple signal ports (SDI/HDMI/CVBS), meet different needs
9. Power using included 12-volt supply or use standard 4-pin XLR

Specifications
Display Spec.
1. Model: D101 PLUS
2. Screen Size: 10.1 inch x 2 IPS
3. Resolution: 1920 x 1200 pixels
4. Pixel Pitch: 0.1128(H) x 0.1128 (W) mm
5. Aspect Ratio: 16:10
6. Brightness: 500cd/m2
7. Contrast Ratio: 1500:1
8. Backlight: LED
9. Viewing Angle: 80 degree /80 degree (L/R) 80 degree /80 degree (U/D)

Input (Each LCD):
1. 1 x BNC: 3G-SDI
2. 1 x HDMI: HDMI
3. 1 x BNC: Video
4. 2 x RCA: Audio(L/R)

Output (Each LCD):
1. 1 x BNC: 3G-SDI
2. 1 x HDMI: HDMI
3. 1 x BNC: Video

Audio (Each LCD):
Audio Out: Stereo Headphone x 1

SDI Support Format:
1. 720p(60/59.94/50/30/29/25/24/23.98)
2. 1080i(60/59.94/50)
3. 1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)

HDMI Support Format:
1. 480i/576i/480p/576p
2. 1080i (60/59.94/50)
3. 720p (60/59.94/50/30/29/25/24/23.98)
4. 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
5. 4K UHD 3840 x 2160p (30/29.97/25/24/23.98 Hz)
6. DCI 4K 4096 x 2160p (24Hz)

CVBS (Video) Support Format:
PAL/NTSC auto recognize

General:
1. Input Voltage: DC 9-24V
2. Power Consumption: Less than or equal to 24W
3. Working Temperature: -10 degree C~60 degree C
4. Storage Temperature: -30 degree C~70 degree C
5. Power Connector: DC/ 4-pin XLR
6. Install Way: Rack Mount
7. Unit Size: 482x177x25 mm
8. Unit Weight: 2048g

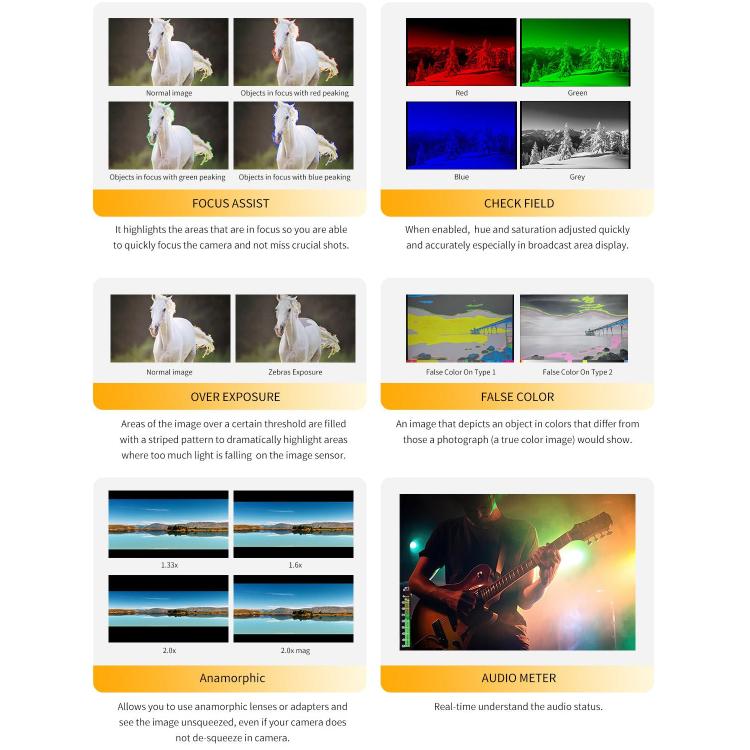

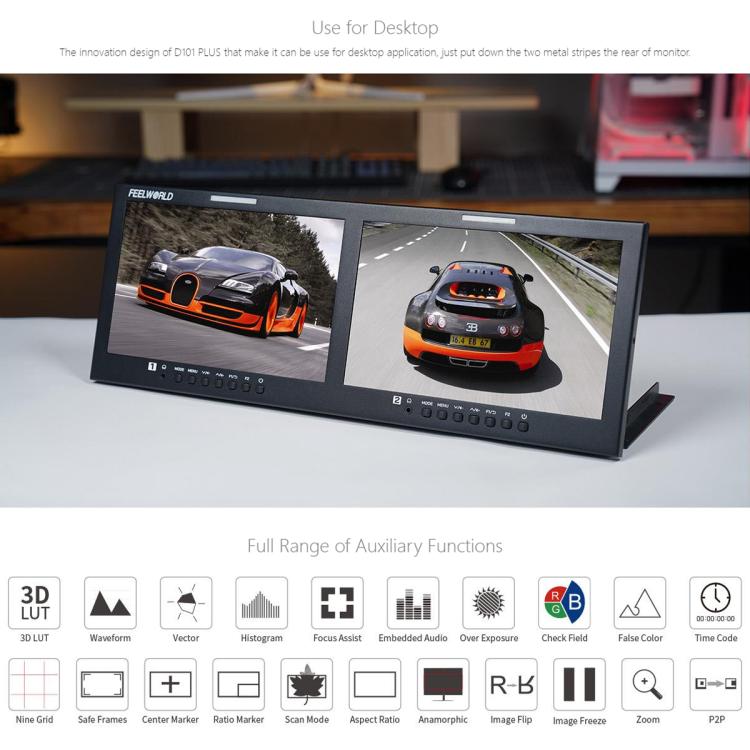

Functions
1. Waveform (RGB, YUV, Y)
2. Vectorscope
3. Histogram (RGB1, RGB2, Y)
4. Custom LUTs (up to 32)
5. Focus Assist(Red, Green, Blue)
6. Check Field (Red, Green, Blue, Mono)
7. Embedded Audio
8. Over Exposure
9. Pixel to Pixel
10 Center Marker (Red, Green, Blue, Black, White, Gray)
11. Ratio Marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1)
12. Image Flip (H, V, H/V)
13. Image Freeze
14. Zoom Mode (2X???4X???9X???16X???User)
15. False Color
16. Scan Mode(Under Scan, Over Scan)
17. Anamorphic (1.33X, 1.6X, 2.0X, 2.0X MAG, User)
18. Aspect Ratio (Auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, Full Screen)
19. Custom Color Temperature
20. Built-in LED tally indicators (Red, Green, Yellow)

Package List
1. Monitor x 1
2. Tally adapter kit x 1
3. Mini USB to USB cable x 1
4. 3A power adapter x 1
5. Manual x 1
